Magnetic Closure Boxes Manufactured by PM Packaging
Premium rigid & collapsible boxes with a secure, satisfying snap.

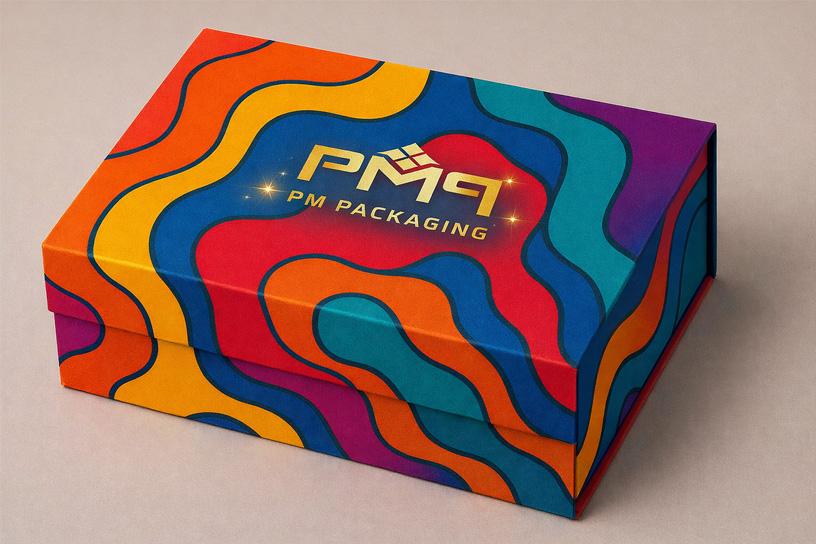

What is a Magnetic Closure Box?
Magnetic closure boxes (also known as magnetic lid rigid boxes) are setup boxes featuring a hinged lid that snaps shut with hidden magnets. They combine the robustness of rigid board with a seamless, premium opening experience. Available in pre-assembled rigid or collapsible formats, they are the gold standard for luxury retail, beauty kits, influencer seeding, and corporate gifting.
Specs at a Glance
| Feature | Specification Options |
|---|---|
| Box Type | Rigid Setup (Pre-assembled) or Collapsible (Fold-flat) |
| Board Thickness | 1.5mm, 2mm, 2.5mm, or 3mm (Heavy Duty) |
| Wrap Options | Uncoated, Texture (Linen), Soft-touch, Specialty Laminates, Kraft |
| Closures | Standard Magnet, Strong Magnet (Double), Ribbon Pulls |
| Insert Options | Foam, EVA, Paperboard, Velvet Trays, Molded Pulp |
| Finish Menu | Foil Stamping, Emboss/Deboss, Spot UV, Edge Painting, Anti-scuff |
Rigid Setup vs. Collapsible Magnetic Boxes
Both styles offer the same meaningful "snap" closure and premium feel. The choice usually comes down to storage space and fulfillment speed.
| Comparison Grid | Rigid Setup (Pre-assembled) | Collapsible (Fold-Flat) |
|---|---|---|
| Best For | High-speed fulfillment, intricate inserts, ultimate luxury feel | Freight savings, limited storage space, lower volume runs |
| Freight & Storage | Bulky (ships air/empty); requires warehouse space | Efficient (ships flat); up to 75% space savings |
| Perceived Value | Highest (seamless corners, solid feel) | High (visible fold lines on corners) |
| Insert Compatibility | All types (glued-in foam, trays) | Loose inserts (placed after pop-up) |
How to Measure a Magnetic Closure Box
Accurate measurements prevent product rattling and ensure a premium fit. Always measure Internal Dimensions (Length x Width x Height).
- 1Length (L): The longer side of the opening.
- 2Width (W): The shorter side of the opening (front to back).
- 3Height (H): Depth from top opening to bottom.
For magnetic boxes, the lid usually covers the full height (full flap) or a partial drop. Specify if you have a preference. Don't forget to account for clearance if using foam inserts (add 5-10mm extra space).
Dimensional Diagram
(L x W x H)
Best-Fit Use Cases

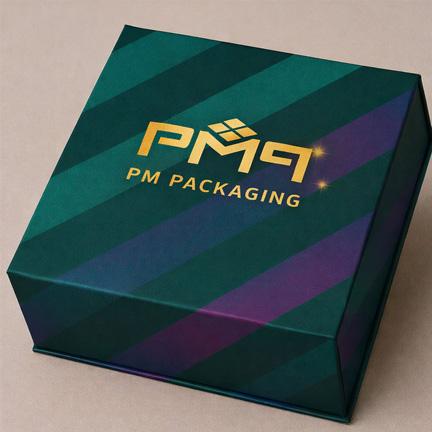

Cosmetics & Fragrance
Electronics
Corporate Gifting & Kits
Cost Drivers: What Affects Pricing?
- Size & Volume: Larger boxes use more board; shipping air affects landed cost.
- Board Thickness: Jumping from 1.5mm to 3mm increases material cost significantly.
- Wrap & Laminate: Textured papers and specialty laminates (soft-touch) are premium upgrades.
- Magnet Count: Extra magnets for strong closure adds labor and BOM cost.
- Insert Type: Molded pulp is cheap at volume but high tooling; foam is versatile but pricier per unit.
- Finish Stack: Foil + Spot UV + Emboss = 3 production passes.
Design Guidelines for Engineers
Optimize your file for production to ensure the perfect fit and finish.
Tolerance & Fit
Rigid box manufacturing has tighter tolerances than corrugated, but board wrapping adds bulk. Allow +/- 1mm variance. Design inserts with finger clearance.
Magnet Placement
Define "keep-out" zones for artwork near magnet cavities to avoid uneven surfaces. Ensure magnets align perfectly with lid flap.
Wrap Seams
Strategically place wrap seams (usually back bottom edge) to hide them. Ensure graphics bridge seams correctly if using full-wrap art.
Scuff Protection
Solid dark colors show scuffs easily. Use anti-scuff matte laminate or textured paper to maintain a pristine look in transit.
Sustainability Choices & Tradeoffs
Eco-luxury is possible. We offer 100% recycled greyboard cores.
- Inserts: Swap foam for molded pulp or folded paperboard to make the entire package curbside recyclable.
- Magnets: While magnets need to be removed for recycling, we can design "easy-remove" hidden tabs for conscientious consumers.
- Finishes: Foil stamping and spot UV are generally accepted in recycling streams, but minimize plastic laminates where possible.
