Snap Lock Bottom Boxes Built for Everyday Reliability
Strong 1-2-3 bottoms. Tool‑free assembly. Ready for retail and e‑commerce.

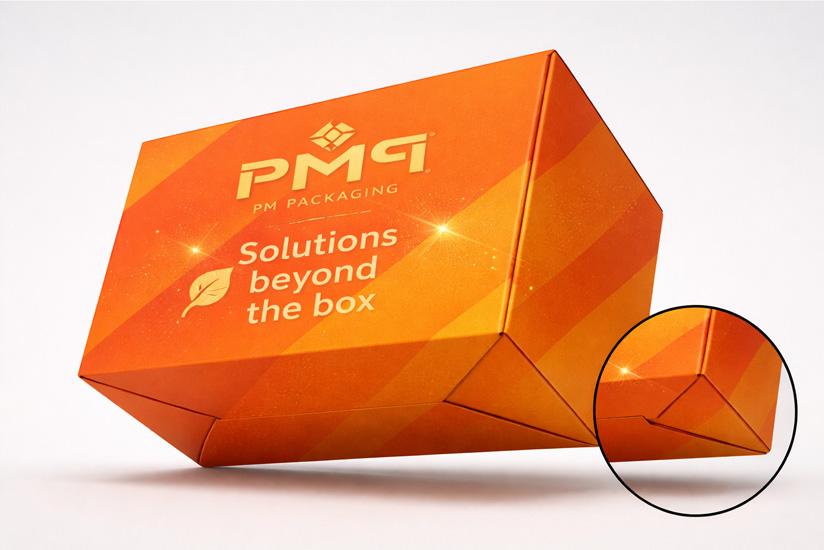

What is a Snap Lock Bottom (SLB) Box?
Snap Lock Bottom—often called a 1‑2‑3 bottom—uses a set of interlocking bottom panels that fold into place without glue or tape. The bottom "snaps" together to create a sturdy, load‑bearing base, while the top typically closes with a tuck flap. SLB is a cost‑effective choice for food, personal care, household goods, and lightweight hardware where durability and manual packing speed both matter.
Snap Lock Bottom vs. Auto-Lock (Crash) Bottom
| Feature | Snap Lock (1-2-3) Bottom | Auto-Lock (Crash) Bottom |
|---|---|---|
| Assembly | Manual fold/lock (3 steps) | Pops open instantly (pre-glued) |
| Cost | Lower (no glue step) | Higher (requires gluing) |
| Best For | Manual packing, small-mid runs | High-volume, rapid fulfillment |
| Strength | Strong, secure base | Strongest (reinforced by glue) |
Not sure which is right? Compare Auto-Lock Bottom Boxes for high-speed lines.
Fast, Tool‑Free Assembly
Panels lock in three quick motions—ideal for hand pack lines and on‑demand fulfillment without extra tape or glue stations.
- Secure Base: Load‑bearing bottom engineered to resist splay under weight
- Operator‑Friendly: Intuitive fold sequence speeds training and reduces errors
Dependable Protection
Choose board caliper and optional inserts to match your product’s weight and route‑to‑market. Add dust flaps or tamper features to keep contents pristine.
- Board Options: SBS, CUK, Kraft back, and recycled blends
- Top Closures: Tuck top, slit‑lock, friction‑lock, or label‑seal ready
Specs at a Glance
Quick reference for standard configurations.
| Board Options | SBS (Solid Bleached Sulfate), CUK (Coated Unbleached Kraft), Recycled Kraft, Metallic/Specialty Boards |
|---|---|
| Standard Closures | Tuck Top (Straight/Reverse), Slit-Lock, Friction-Lock, Label-Seal Ready |
| Available Add-ons | Die-cut Windows (with/without film), Hang Tabs, Tear Strips, Embossing, Foil Stamping |
| Sustainability | 100% Recyclable, Biodegradable, FSC-Certified materials available |
| Common Use Cases | Cosmetics, Food & Beverage, Retail Products, Lightweight Electronics |
How to Measure
To ensure a perfect fit, measure your product's maximum dimensions. We size boxes by Length (L) × Width (W) × Depth (D).
Length (L)
The larger dimension of the opening.
Width (W)
The smaller dimension of the opening.
Depth (D)
The distance from the opening to the bottom.
Assembly (1-2-3 Fold)
- 1
Fold Major Flap
Fold the largest bottom panel in.
- 2
Fold Side Flaps
Fold the two side dust flaps over the major flap.
- 3
Lock It In
Fold the final remaining flap and press the center to "snap" all panels into the locked position.

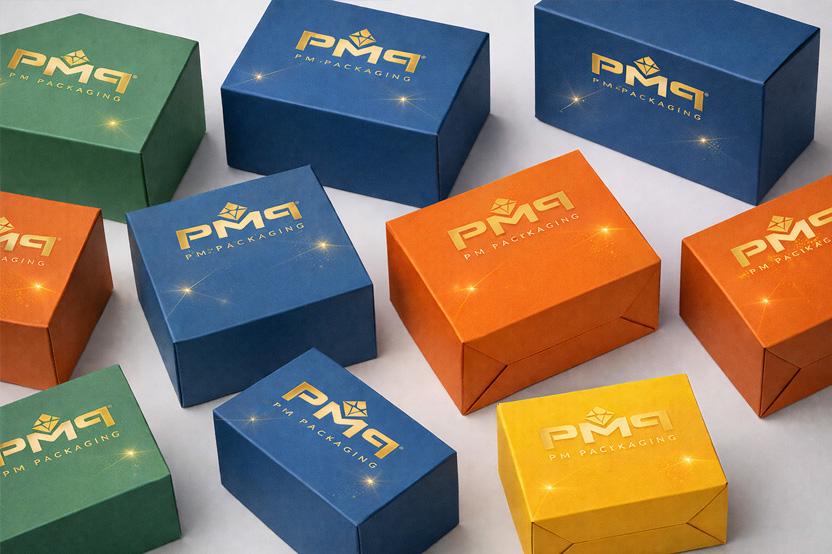

Premium Finishes, Responsible Materials
Elevate print with matte, gloss, or soft‑touch; add foil, spot UV, or emboss/deboss. Ask about recycled content boards and low‑VOC inks to align with your brand’s sustainability goals.
Strategic Application: When to Use Snap Lock Bottom?
Best Fit Use Cases
- Retail & Shelf-Ready: Perfect for candles, cosmetics, jars, and small appliances that need a secure base.
- Manual Fulfillment: Ideal for specific pack-outs where operators can quickly fold the bottom (1-2-3 action).
- Medium-Weight Products: Stronger than a standard tuck-end bottom, good for items up to 3-5 lbs (depending on size/board).
Cost & Performance Drivers
- Cost-Effective: Generally cheaper than Auto-Lock (Crash) Bottoms because they don't require the pre-gluing manufacturing step.
- Reliability: The mechanical lock is extremely reliable and doesn't depend on glue integrity over time.
- Versatility: Works with almost any board grade, from lightweight cosmetic SBS to heavy-duty Kraft.
Frequently Asked Questions
What is the difference between Snap Lock and Auto-Lock Bottom?
Snap Lock (1-2-3 Bottom) requires manual folding (3 steps) to lock, while Auto-Lock (Crash Bottom) is pre-glued and pops open instantly. Auto-lock is faster for fulfillment but slightly more expensive.
Is the Snap Lock bottom strong enough for heavy items?
Yes, it is very strong because the panels interlock mechanically. For extremely heavy items, we might recommend a reinforced Auto-Lock or a rigid box, but for most retail goods (candles, jars, electronics), Snap Lock is excellent.
Does this box style require tape?
No. The bottom interlocks on its own. The top closure (usually a tuck flap) also closes without tape, though you can use a wafer seal or label for tamper evidence.
What are other names for this box style?
It is commonly known as a 1-2-3 Bottom, Houghland, Snap Bottom, or Interlock Bottom box.
Can I print inside the box?
Absolutely. We offer full-color inside and outside printing to create a premium unboxing experience.
